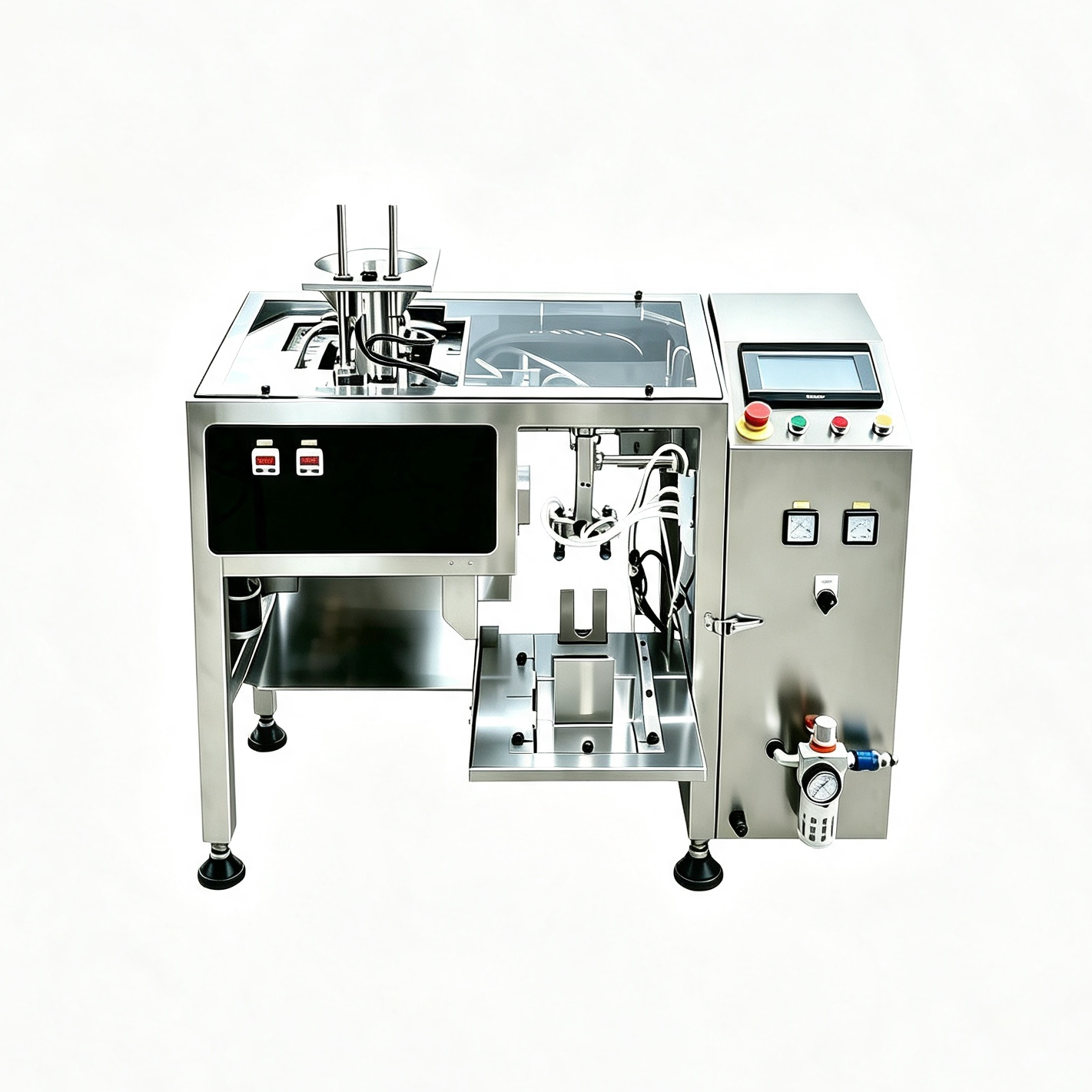

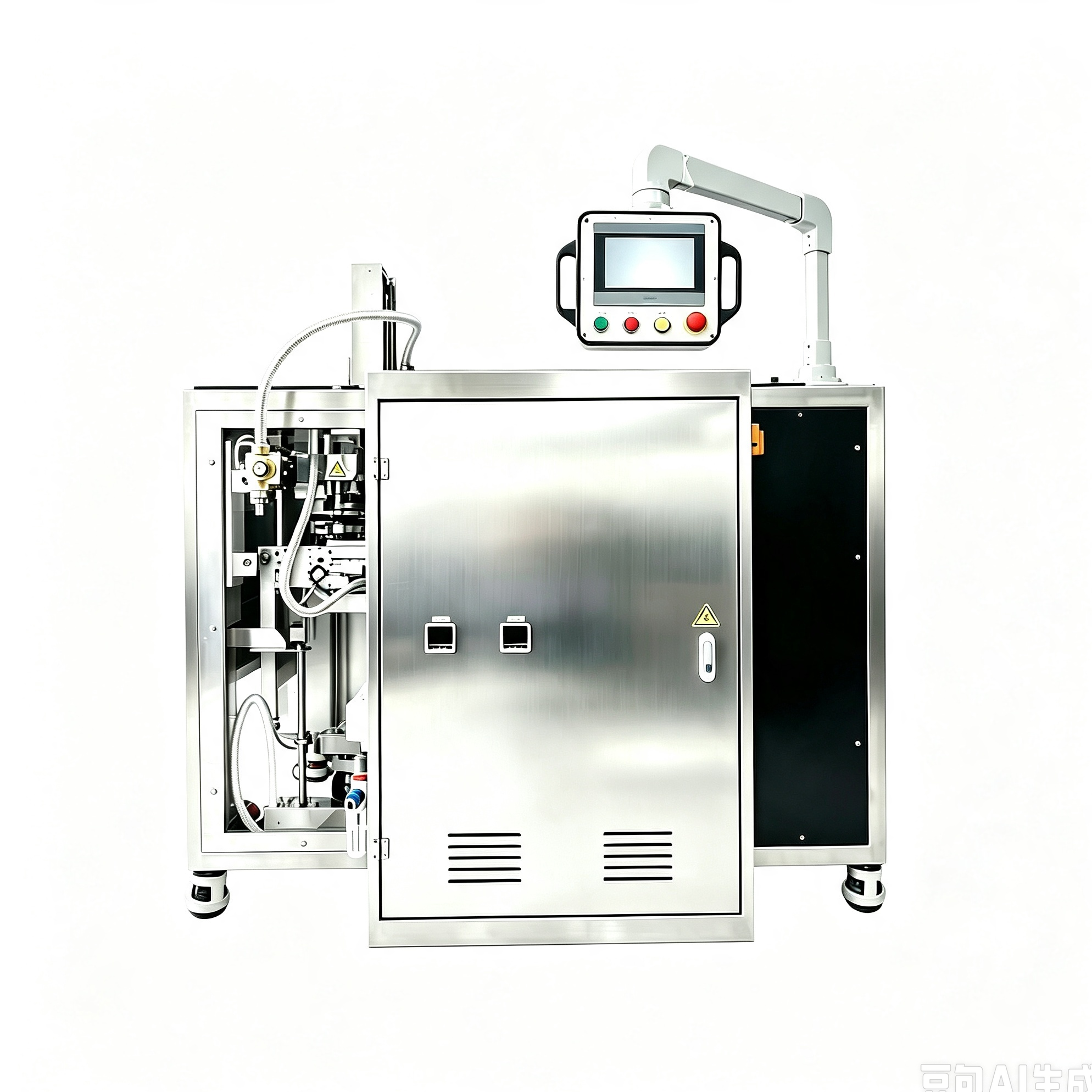

Metal Powder Dedicated Packaging Line

Metal Powder Dedicated Packaging Line

Metal Powder Packaging Unit

ChemicalMetallurgy

Key Selling Points

  • ✓Designed for metal powders prone to clumping, oxidation, and varying flowability. Compact unit footprint minimizes required ceiling height and floor space.
  • ✓The silo features a fully enclosed design with positive-pressure nitrogen purging to remove air. The discharge port includes built-in nitrogen protection, isolating the material from oxygen exposure.
  • ✓Uses high-precision load cells and an arc-shaped chute for material discharge. The weighing hopper and motor are separated with no contact, ensuring accurate weight measurement.
  • ✓Interlock Protection: No filling without a bag, no sealing without material, and alarm on abnormal shutdown.
Request a Quote
ModelHRBZ-260JSF
Packing Speed1-1 bags/min (subject to site conditions)
Bag Opening Width10-26cm
Bag Length12-40cm
Power Type22V 5Hz
Air Consumption≥0.5Mpa、500L/Min
DimensionsL2100m × W1100 × H1200 (excluding conveyor belt)
Packaging Weight10 kg
Sealing TypeHeat Seal
Equipment Materials304 Stainless Steel
